FEATURE

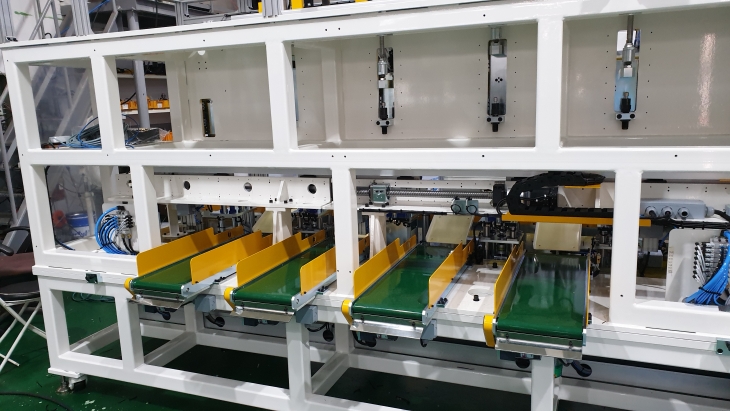

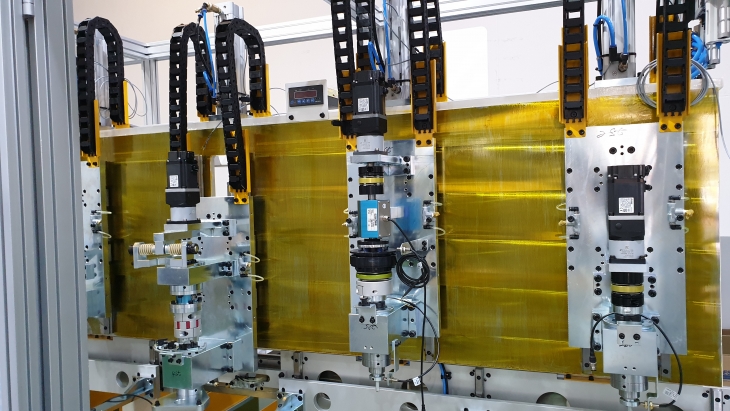

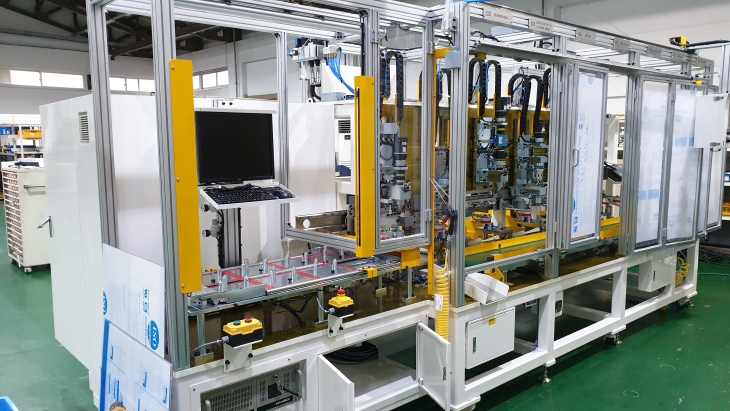

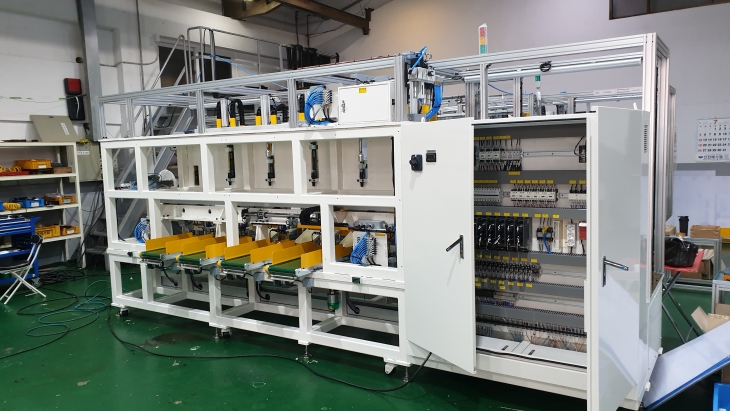

TEST EQUIPMENT OF FRT SEAT BACK ADJUSTMENT BY LEFT AND RIGHT RECLINER WELDED PRODUCTS ARE

MANUALLY PERFORMED MAIN FUNCTION AND PERFORMANCE INSPECTIONS, COLLECT DATA IN P.C STORE AND

MANAGE THE RESULT

SPECIFICATION

C/TIME : 17 sec / 1 ea

DATA MANAGEMENT : PLC & P.C SOFTWARE

SIZE : 5,300 (L) X 1,350 (W) X 2,200 (H)

SEQUENCE OF OPERATION

1. LOADING ----> 2. BURNISHING ---> 3. LEVER EFFORT & LOCKING ANGLE ----> 4. EFFORT ---->

5. FREE PLAY  ----> 6. DELIVERY POSITION ----> 7. MARKING -----> 8. UNLOADING
