FEATURE

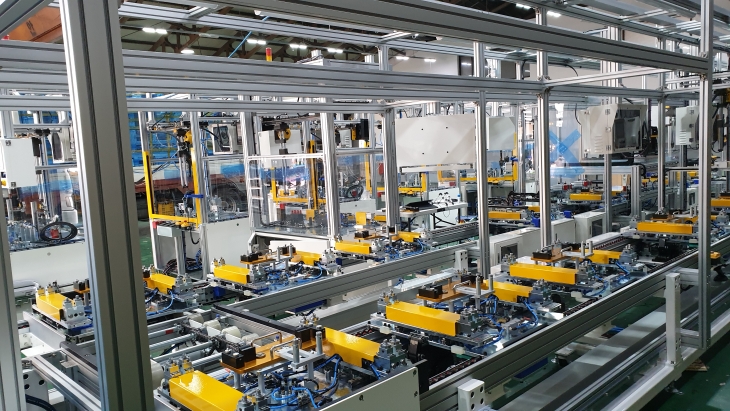

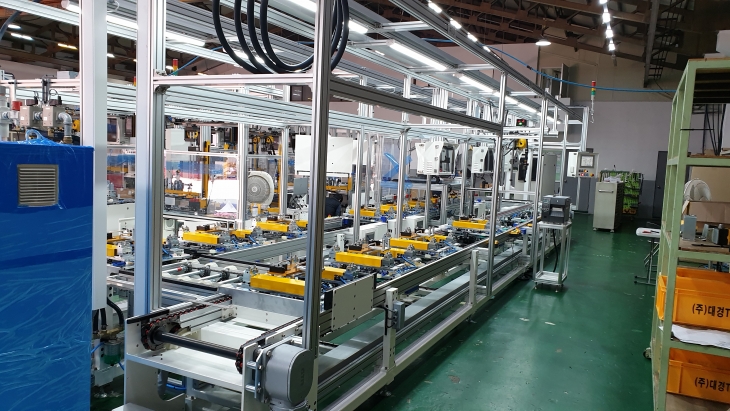

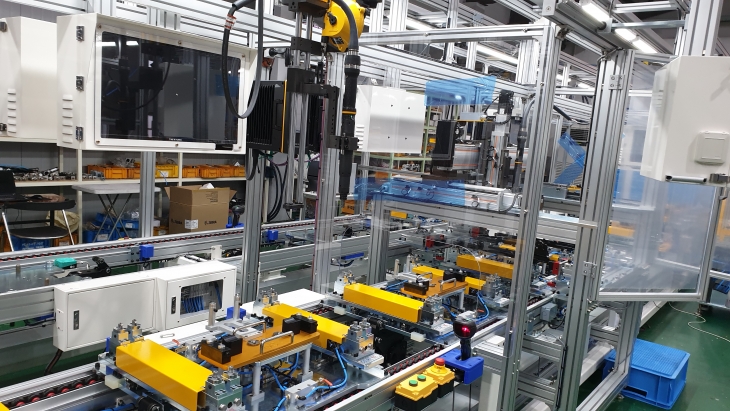

THIS EQUIPMENT IS AUTOMOBILE SEAT ASSEMBLY AUTOMATION M/C OF USING H-FRAME.

WORK MODEL : OS/IK, CK/NE (PWR-LH/RH)

OPERATOR : 4 PERSONS

SPECIFICATION

C/TIME : 36 sec / 1 ea

DATA MANAGEMENT : P.C & POP SYSTEM (RFID : PEPPERL + FUCHS)

SIZE : 13,000 (L) X 5,000 (W) X 2,500 (H)

※ SEQUENCE OF OPERATION

01ST : H-FRAME LOADING

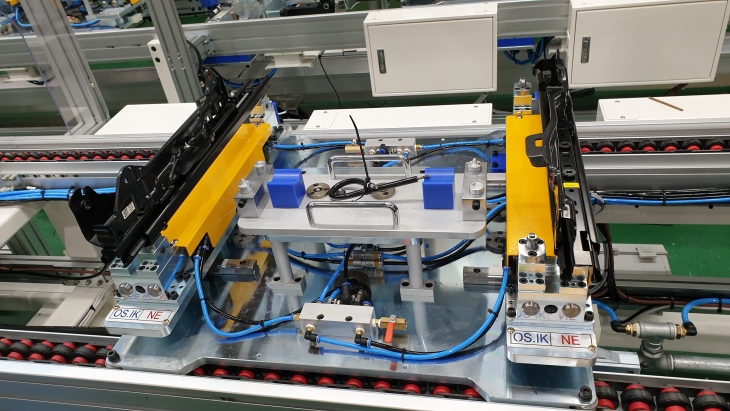

02ST : PALLET JIG PART

03ST : BOLT UNLOCKING PART

04ST : AIR INSERT PART

05ST : PALLET STOPPER

06ST : POSITION
