FEATURE

It assembles automatically ‘Unit Product’ by conveyor and mechanism for ‘UPPER RAIL’ needing the Car Seat to backward and forward moving.

It is ‘Semi-Automatic Equipment’ to check the main function and performances.

It saves ‘DATA’  in cooperation with P.C including Real-Time display and also searches the results.

SPECIFICATION

C/TIME : 17 sec / 1 ea

DATA MANAGEMENT : PLC & P.C SOFTWARE

SIZE : 7,700 (L) X 1,900 (W) X 2,600 (H)

SEQUENCE OF OPERATION

01ST : RAIL LOADING

02ST : C/BOLT LOADING

03ST : FRONT (2P) C/BOLT PRESS

04ST : REAR (2P) C/BOLT PRESS

05ST : FULL PROOF

06ST ; RAIL UNLOADING

07ST ; INPUT CONVEYOR

08ST ; OUTPUT CONVEYOR

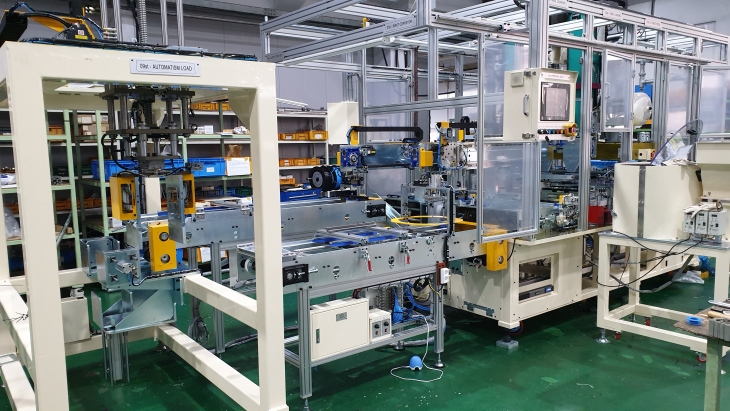

09ST : AUTOMATISM LOAD
